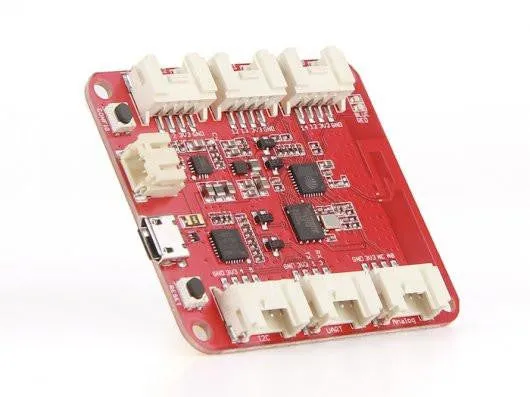

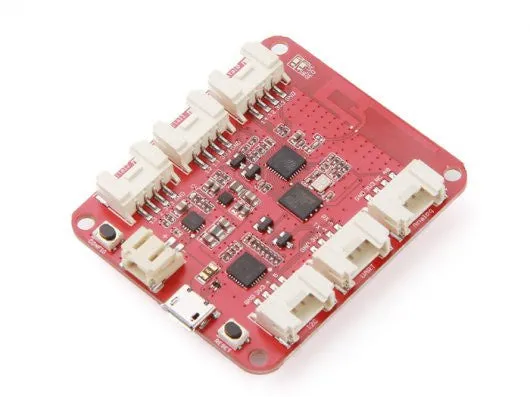

Wio Link is designed to simplify your IoT development. It is an ESP8266 based open-source Wi-Fi development board to create IoT applications by virtualizing plug-n-play modules to RESTful APIs with mobile APPs.
The traditional methodology of building IoT applications consists of electronic engineering, micro-controller programming, network programming, IoT protocols handling and application development. Every step involves various hardware and software knowledge and challenges.
This time, we define a new way to create IoT applications.
No hardware programming. No breadboard. No jumper wires. No soldering.
3 steps. 5 minutes. Build your own IoT applications!
- Visual Configuration
- OTA (Over-The-Air) Firmware Updates
- Plug-n-Play Groves
- IFTTT Application
- Android & iOS APPs
- RESTful APIs
- Wi-Fi Network Protocol: 802.11b/g/n
- Wi-Fi Encryption Technologies: WEP/TKIP/AES
- Input Voltage：Battery holder: 3.4~4.2V; MICRO USB: 5V
- Output DC Current: 1000mA MAX
- Operating Voltage : 3.3V
- Charge Current: 500mA MAX
- Flash Memory: 4MByte
- Size: 55mm*48mm
- Weight: 26g
- CE/FCC/IC Certified
Learn more at our .
Learn more at our .
Learn more at our .
Learn more at our .
Learn more at our .
Part List
- Wio Link * 1
- USB cable * 1
Please visit our page for more information about this product. It will be much appreciated if you can help improve the documents, add more demo codes or tutorials. For technical support, please post your questions to our Forum.
